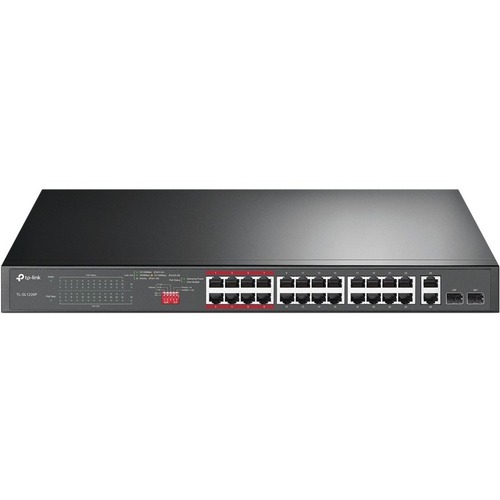

TP-Link TL-SL1226P 26 Ports Ethernet Switch - 2 Layer Supported

$379.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
TL-SL1226P
+

Description

TP-Link TL-SL1226P 26 Ports Ethernet Switch - 2 Layer Supported - 2 SFP Slots - 18.32 W Power Consumption - 250 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Dedicated Design for IP Surveillance-Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas.

Dedicated Design for IP Surveillance-Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-24

With one click, Isolation Mode easily divides traffic for ports 1-24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.

Plug and Play

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.

Specifications :

Management & Protocols

Manageable

No

Miscellaneous

Environmentally Friendly

Yes

Network & Communication

Layer Supported

2

I/O Expansions

Expansion Slot Type

SFP (mini-GBIC)

Number of Total Expansion Slots

2

Number of SFP Slots

2

Shared SFP Slot

Yes

Interfaces/Ports

Network (RJ-45)

Yes

Total Number of Network Ports

26

Port/Expansion Slot Details

2 x Gigabit Ethernet TP/SFP Combo

24 x Fast Ethernet PoE+

Power Description

Input Voltage

120 V AC

230 V AC

Power Source

Power Supply

Frequency

50 Hz

60 Hz

Power Consumption

18.32 W

PoE (RJ-45) Port

Yes

PoE Budget

250 W

Physical Characteristics

Height

43.2 mm

Width

439.4 mm

Depth

180.3 mm

Product Material

Metal

General Information

Product Type

Ethernet Switch

Manufacturer Part Number

TL-SL1226P

Manufacturer Website Address

http://www.tp-link.com.au

Manufacturer

TP-LINK Technologies Co., Ltd

Product Model

TL-SL1226P

Product Name

24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

Brand Name

TP-Link

Media & Performance

Network Technology

1000Base-T

10/100Base-T

1000Base-X

Ethernet Technology

Gigabit Ethernet

Fast Ethernet

Media Type Supported

Twisted Pair

Optical Fiber
