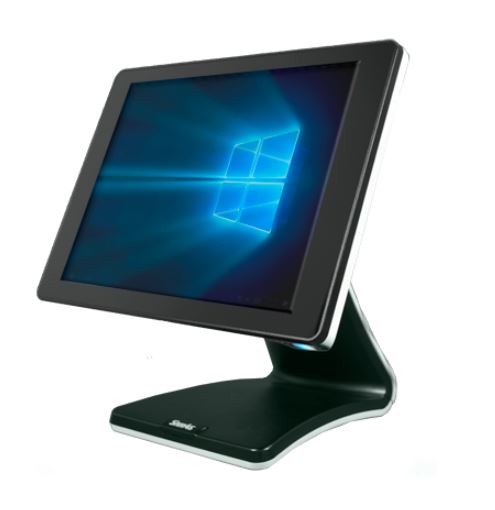

SAM4S TITAN S360 J1900 PCAP 4G 128G SSD WIN10I Blk-White TOUCH SYSTEM

$1,592.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
CGOD54BNS
+

Description

SAM4S TITAN S360 J1900 PCAP 4G 128G SSD WIN10I Blk-White

TITAN S360 FANLESS Touch System,15” PCAP Bezelfree, J1900 up to 2.42G Quad core, 2M cache, 4GB DDR3L RAM, 128GB SSD, Black/White, WIN 10 IoT 64 bit preloaded

Features :

  • Fanless Touch System
  • 15" LED LCD Display with True-Flat PCAP Touch
  • Intel Bay Trail J1900 up to 2.42G Quad core CPU, 2M cache
  • Energy Efficient and Low Heat Generation Architecture
  • Slim Display, Sleek Chassis and Small Footprint Design
  • IP55 dust and water Proof Front Panel
  • Superior Serviceability and Easy Installation
  • Fanless Operation and No Ventilation Hole
  • Supporting M.2 SSD
  • Microsoft Azure certified



Specifications :

CPU : Intel Bay Trail J1900 up to 2.42G Quad core (2M Cache)

Memory : DDRIIIL One slot. 4GB standard expandable to 8GB DDRIIIL
expansion slots: mini PCIe slot & m.2 Slot

Storage device(s) : In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives

Display : 15" LED Backlight LCD Display

Resolution : 1024 x 768

Tilt Angle : N/A

Touch Panel : True Flat PCAP Touch (Standard in Australia)
Optional; 5 Wire Resistive touch (Special Order, MOQ Applies)
USB I/F

I/O Ports : 4 x RS-232 Ports (2 x DB9, 1 x RJ45) with 5V/12V BIOS selectable, one port selectable to RS422/485
6 x Standard USB Ports (2 x USB 2.0/2 x USB 3.0 on Bottom, 2 x USB 2.0 on the side)
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x VGA Port for 2nd Display + 12V power outlet
1 x Parallel port (Factory Option)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
1 x Audio Ports (Line out)

Audio : N/A

OS Support : POSReady 7 / WIN 8 Industry Retail / WIN IoT

Environmental Sealing : IP55 to Front

Operating Environment : 0 ~ +40 °C, 20 ~ 85% RH with SSD

Storage Environment : -20 ~ +60 °C, 10 ~ 85% RH

Power Supply : DC 12V/5A

External Dimensions (WxDxH) :380mm x 380mm x 380mm

Weight :5.9 Kg



Attachments

Brochure (SAM4S.pdf, 270 Kb) [Download]
