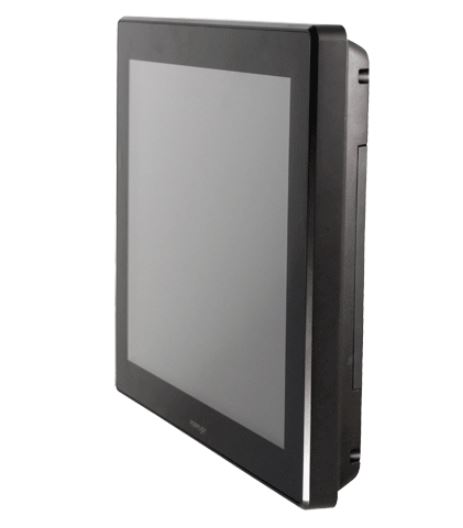

POSIFLEX XT3815 J1900 Q Core 4G 32GSSD PCAP IoT64 TOUCH SYSTEM

$1,695.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
XT381590U68200
+

Description

POSIFLEX XT3815 J1900 Q Core 4G 32GSSD PCAP IoT64 no base

15" fanfree bezelfree PCAP touch terminal, Intel J1900 Quad core up to 2.42Ghz, 2M cache, 4GB DDR3L, 64GB SSD, No Base, IP44 Upgrade, WIN IoT 64bit Preloaded

Features :

  • PC POS Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 15" LCD 1024 x 768 resolution
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • RAID 1 (Disk Mirroring) support to backup important data (Optional)
  • Push-open cover to protect power switch from accidental shutdown
  • New Gen 7 Slim line Base (Patent pending)
  • Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules



Specifications :

CPU : Intel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz

Memory : DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB

Storage device(s) : In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives

Display : 15" TFT LED Backlit LCD Display

Resolution : 1024 x 768

Tilt Angle : 15° to 90°

Touch Panel : Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch

I/O Ports : 4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 6 x USB2.0)
Optional Powered USB Ports 1 x 24V & 3 x 12V on GEN 8 Base
1 x Proprietary USB port for side mount optional devices
1 x Parallel Port through service window (Optional Proprietary Cable)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Mini-PCIe slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)

Audio : 2W Speaker

OS Support : Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / Linux per request

Environmental Sealing : N/A

Operating Environment : 0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD

Storage Environment : -20 ~ +70 °C, 10 ~ 90% RH

Power Supply : 12V DC Power Adapter (60W)
(Optional 80W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)

External Dimensions (WxDxH) : 372mm x 320mm x 252.7mm

Weight : 5.6 Kg



Attachments

Brochure (XT3815.pdf, 773 Kb) [Download]
