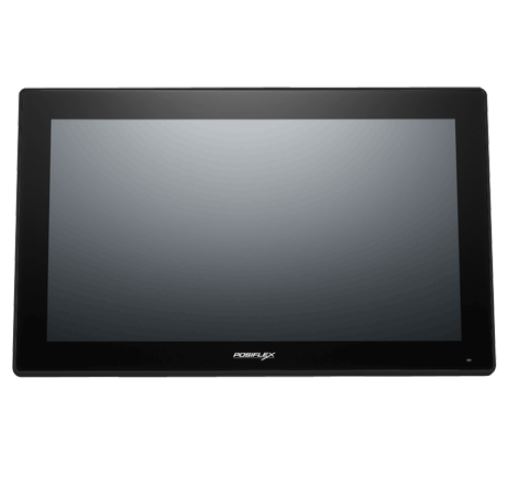

POSIFLEX RT-5016 i3 4GB 128 GB SSD WIN 10 IoT NO BASE TOUCH SYSTEM

$4,592.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
RT501B00865300FJ
+

Description

POSIFLEX RT-5016 i3 4GB 128 GB SSD WIN 10 IoT no base

T5016 - 15.6" Super slim fanfree bezelfree PCAP touch terminal, Intel Sky Lake Core i3-6100U 2.3Ghz , 3M cache, 4GB DDR4, 128GB SSD, 3 x serial, 1 x USB3.0, 3 x USB2.0, 1 x LAN, 1 x VGA, 1 x Mini DP, IoT 64 Bit PreLoaded. No Base

Features :

  • Slimline 15" Fanless Touch POS Terminal
  • Projective Capacitive Touch screen (PCAP)
  • 15.6" LCD 1920 x 1080 resolution
  • Intel Skylake Core i3-6100U Dual Core CPU, 2.30 GHz, 3M Cache and DDR4 memory
  • Fan-free design boasting quiet and anti-dust features
  • Clean Cable management
  • Aluminium die-cast main housing design for efficient cooling
  • Can be shipped with 10" LCD Customer display mounted
  • Optional USB or Powered USB expansion module in base



Specifications :

CPU : Intel Skylake Core i3-6100U Dual Core CPU, 2.30 GHz, 3M Cache

Memory : DDR4 SO-DIMM slot x 2, max. 16GB

Storage device(s) : In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
2nd SATA Slot available

Display : 15.6" TFT LCD

Resolution : 1920 x 1080

Tilt Angle : 15° to 90°

Touch Panel : Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch

I/O Ports : 3 x RS-232 Ports (1 x DB9, 2 x 10 pin RJ50) with 5V/12V Support
4 x USB Ports (2 x USB3.0/2.0 2 x USB2.0)
Optional USB expansion module to bring total to 7 USB Ports (in base, uses 1 x USB3.0)
or Optional PoweredUSB expansion module 1x12V & 1 x 24V USB Ports (in base, uses 1 x USB3.0)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port via proprietory cable for 2nd Display (with 12V Power for Posiflex LCD Monitors)
1 x mini DP port
1 x Mini-PCIe slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)

Audio : internal 1 x 2W Speaker

OS Support : Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / WIN10 IoT 64 bit / Linux per request

Environmental Sealing : IP65 to front screen

Operating Environment : 0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD

Storage Environment : -20 ~ +70 °C, 10 ~ 90% RH

Power Supply : 12V DC Power Adapter (80W)
(Optional 150W when equiped with Powered USB module)

External Dimensions (WxDxH) : 368mm x 207mm x 325mm

Weight : 5.4 Kg





Attachments

Brochure (RT-5016.pdf, 368 Kb) [Download]
