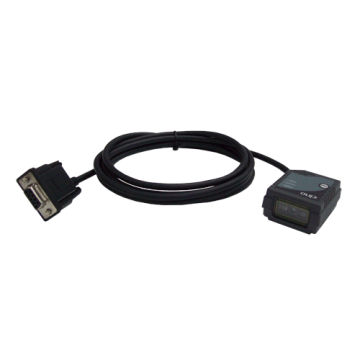

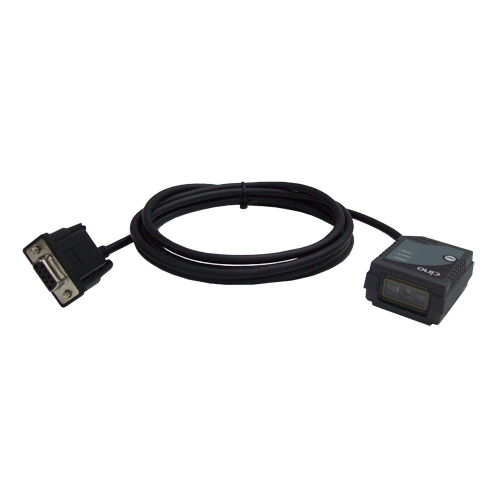

CINO FM480 Front view Universal Kit RS232

$369.00
For Special & Volume Pricing - Call +61 2 8806 0418
FM480F-RU
+ −

Need Help

Choosing a Product
+61 2 8806 0418 Live Chat Email Us
Talk to our technical Expert
price match

Description

Scan Engine
High Performance Linear Imaging Engine
Light Source
630 nm visible red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 500 scans/sec
Contrast Ratio
20% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
More then 60 cm on 100% UPC/EAN symbols
More then 86 cm on 20 mil code 39
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0~100000 Lux
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.
Programming Method
Bar code command, Serial Command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
3 LEDs for power, Status, OK/NG indications
Test button
Programmable beeper
Operating Modes
Trigger, Alternative, Level, Force, Presentation.
Communication Type
Corded
Interfaces
RS232 serial
USB HID (USB Keyboard)
USB COM port emulation
Supply Voltage
5VDC ±10%
Power Consumption
Operating : Typical 165 mA @5VDC
Standby : Typical 70 mA @5VDC
Drop Specification
N/A
Environmental Sealing
IP54
ESD Protection
Functional after 15kV discharge
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
EMC: CE, FCC, BSMI, VCCI, KC
Safety: LED Eye Safety IEC62471, Exempt Group
Environmental: Compliant with RoHS directive
External Dimensions (WxDxH)
40.6 x 23.1 x 47.6 mm
Weight
120g (RS232 and Universal version)
95g (USB version)
