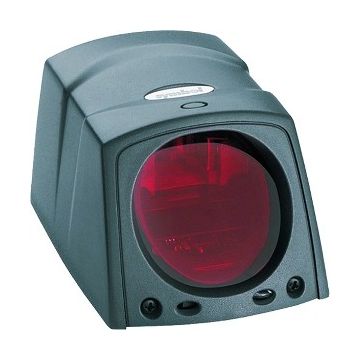

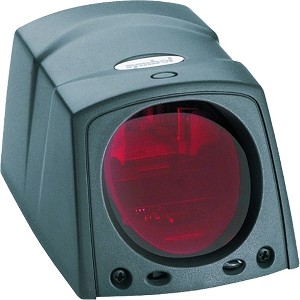

Fixed Mount 1D Laser Scanner ("Fuzzy" Technology), Class 2, Standard Laser (SL), TTL RS-232/USB/Synapse
MiniScan MS1207 Bar Code Reader is compact, durable, industrial fixed mount scanner that is available in fuzzy or wide angle versions for maximum versatility. It is ideal for applications such as diagnostic equipment, medical instruments, kiosks, robotic equipment, lottery terminals and many more. When used as a fixed mount scanner, the modules are ideal for manufacturing, warehousing and shipping, conveyer belts, assembly lines, library systems and countless other applications needing reliable unattended scanning.
| Basic |
|---|
| Barcode Dimension: |
1D |
| Brand Name: |
Zebra |
| Connectivity Technology: |
Cable |
| Host Interface: |
Serial |
| Image Sensor: |
Linear |
| Light Source: |
Laser |
| Product Family: |
MiniScan |
| Product Type: |
In-counter Barcode Scanner |
| Scan Pattern: |
Linear |
| General Information |
|---|
| Brand Name: |
Zebra |
| Manufacturer Part Number: |
MS-1207FZY-I000R |
| Manufacturer Website Address: |
http://www.zebra.com/ap/en.html |
| Manufacturer: |
Zebra Technologies Corporation |
| Product Line: |
MiniScan |
| Product Model: |
MS1207 |
| Product Name: |
MiniScan MS1207 Bar Code Reader |
| Product Type: |
In-counter Barcode Scanner |
| Interfaces/Ports |
|---|
| Host Interface: |
Serial |
| Miscellaneous |
|---|
| Additional Information: |
Supported Interfaces:
USB Cable separate
|
| Certifications & Standards: |
Laser Classification:
- CDRH Class II
- IEC Class 2
Electrical Safety:
- UL1950
- CA C22-2 NO950 ENG60950/IEC950
EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B European Union EMC Directive
- Australian SMA
Environmental:
|
| Environmental Certification: |
RoHS |
| Environmentally Friendly: |
Yes |
| Physical Characteristics |
|---|
| Depth: |
74.7 mm |
| Height: |
40.6 mm |
| Weight (Approximate): |
126.2 g |
| Width: |
57.9 mm |
| Technical Information |
|---|
| Barcode Dimension: |
1D |
| Barcode Symbology Supported: |
- UPC/EAN
- Code 128
- UCC/EAN 128
- Code 39
- Code 93
- Interleaved 2 of 5
- Discrete 2 of 5
- Codabar
- MSI
- RSS
|
| Connectivity Technology: |
Cable |
| Depth of Field: |
25.40 mm - 863.60 mm@0.51 mm - 80% MRD |
| |
55.88 mm - 1695.45 mm@1.02 mm |
| |
55.88 mm - 654.05 mm@0.33 mm - 100% UPC |
| |
76.20 mm - 317.50 mm@0.19 mm |
| |
82.55 mm - 177.80 mm@0.13 mm |
| Image Sensor: |
Linear |
| Light Source: |
Laser |
| Scan Pattern: |
Linear |
| Scan Rate: |
36 scan/s |
| Warranty |
|---|
| Limited Warranty: |
3 Year |
