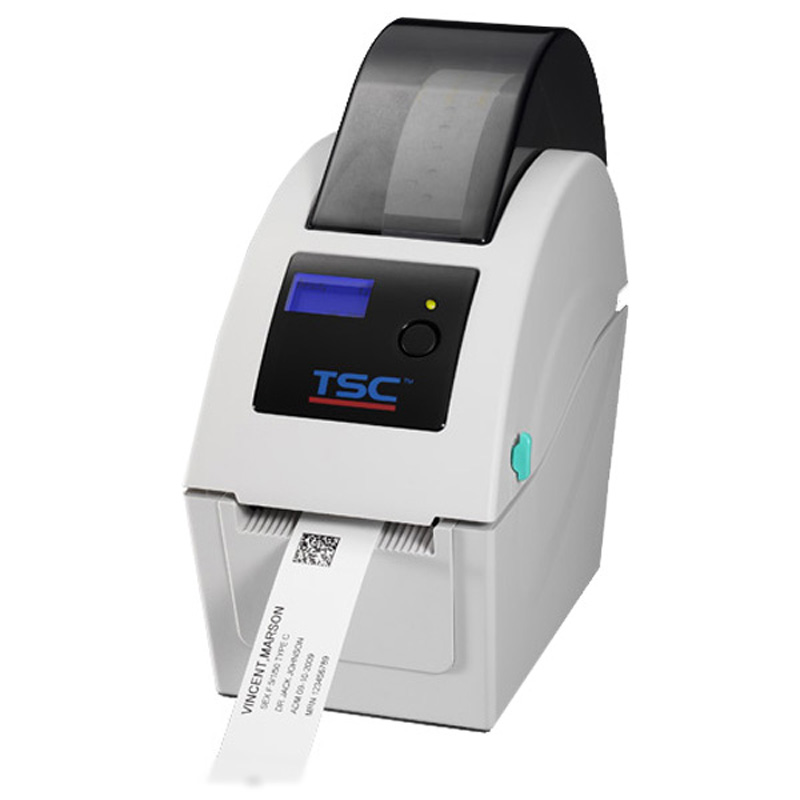

TSC TDP-225W Wristband USB+Ethernet Direct Thermal Label Printer

[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +61 489 087 085
TDP-225W

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The TSC TDP-225W Wristband Label Printer is a compact, reliable, and cost-effective solution designed for wristband printing applications in healthcare, hospitality, entertainment, and event management. Based on the proven TDP-225 platform, this model supports a larger 6.5-inch OD wristband roll for extended printing and comes equipped with USB and Ethernet connectivity for versatile integration.

With 203 DPI Direct Thermal printing, a 128x64 pixel backlit LCD display, and support for a wide range of 1D and 2D barcodes, the TDP-225W ensures precise and high-quality wristband printing. Its clamshell design makes media loading fast and effortless, while multiple sensors provide reliable operation. Built with TSC’s durability, it offers up to 5 IPS print speed, expandable memory via microSD, and a wide variety of media compatibility.

Perfect for patient identification, guest check-in, access control, and ticketing, the TDP-225W provides the performance and reliability Australian businesses need for continuous wristband printing.


Product Features

  • Compact wristband printer ideal for healthcare, hospitality, and events
  • Direct Thermal printing with 203 DPI resolution for crisp results
  • Supports wristband rolls up to 6.5-inch OD with 1-inch core
  • USB 2.0 and Ethernet (10/100 Mbps) connectivity
  • Fast printing speeds up to 5 inches per second
  • 128 x 64 pixel backlit LCD display for easy operation
  • Built-in real-time clock and 32-bit RISC high-performance processor
  • Expandable memory with MicroSD slot up to 4GB
  • Supports major 1D & 2D barcodes including QR, PDF417, DataMatrix
  • Multiple sensors – gap transmissive, black mark reflective, head open
  • Rugged design with 24-month warranty on the printer
  • Peeler and cutter modules available as optional accessories


Product Specifications

Specification

Details

Model

TSC TDP-225W Wristband Printer

Print Method

Direct Thermal

Print Resolution

203 DPI (8 dots/mm)

Max Print Speed

2, 3, 4, 5 IPS (selectable)

Max Print Width

52 mm (2.05”)

Max Print Length

2,286 mm (90”)

Media Type

Wristbands, continuous, die-cut, black mark, fan-fold, notch

Media Width

15 – 52 mm (0.59” – 2.05”)

Media Thickness

0.06 – 0.19 mm (2.3 – 7.4 mil), max 150 g/㎡

Media Roll Capacity

6.5” OD, 1” core

Enclosure

Clamshell design with wall mount capability

Display

128 x 64 pixel graphic LCD with backlight

Processor

32-bit RISC high-performance processor

Memory

4MB Flash, 8MB SDRAM, MicroSD expandable up to 4GB

Connectivity

USB 2.0, Ethernet (10/100 Mbps), USB host (optional for scanner/keyboard)

Barcode Support

1D: Code 39, 93, 128, UPC, EAN, ITF, POSTNET, RSS, etc.
2D: QR, PDF417, Maxicode, DataMatrix, Aztec

Fonts

8 alpha-numeric bitmap fonts, scalable Monotype Image® font

Sensors

Gap transmissive (offset), black mark reflective (adjustable), head open

Dimensions

260 mm (L) x 109 mm (W) x 210 mm (H) / 10.24” x 4.29” x 8.27”

Weight

Lightweight desktop design

Power Supply

External universal switching power supply

Operating Environment

5°C to 40°C, 25–85% RH non-condensing

Storage Environment

-40°C to 60°C, 10–90% RH non-condensing

Warranty

Printer: 24 months

Features

Manufacturer
:
TSC

Attachments

Brochure (TDP-225W.pdf, 370 Kb) [Download]

Specification (TDP-225W_Specification.pdf, 253 Kb) [Download]
