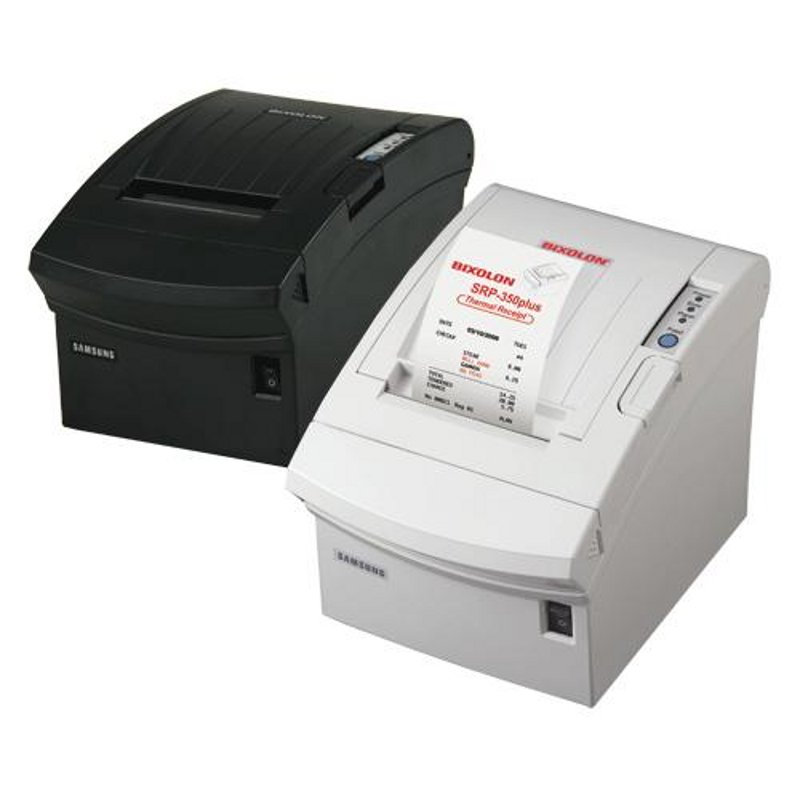

Samsung Bixolon SRP350PLUSUP Thermal POS Printer With Auto cutter, USB Standard & Parallel Interface


[Contact us for a price]
SRP350PLUSUP / SRP350PLUSUPG

Description

Discontinued, Replacement:SRP-350 Plus III

The SRP-350 is the most popular direct thermal printer of the BIXOLON Samsung mini printer line-up throughout the world. The SRP-350Plus is the next generation in the SRP-350 Range. It's improvements include an increase of printing speed, colour printing, standard fitted with USB 2.0 interface plus a 2nd interface.

Features:

  • Fast printing speed of up to 200mm per second (30% faster than the SRP-350)
  •    - Optimized mechanical components and software to enable fast and stable printing Improved CPU (32 Bit), Bigger Memory (4 M Bits) and increased Receive Buffer (64K byte)
  •    - High speed USB 2.0 standard onboard (480 Mbps)
  • Long lasting Auto-cutter up to 1.8 million cuts with easy paper-jam removal Two colour printing (on special Paper)
  • Customer oriented software tools provided
  • 2D barcode printing support
  •    - PDF417
       - QR-Code
  • Available in Dark Grey & White
  • Only Auto cutter version available in Australia

Attachments

SRP350PLUS-Brochure (srp350plus_brochure.pdf, 415 Kb) [Download]

Specifications

Print
Printing Method Direct Thermal
Printing Speed 200mm/sec (47.28 LPS)
Resolution 180DPI (7dot/mm)
Character Set

Alphanumeric Character :95 Extended Graphic : 128 X 34 page International Character :32

Font
Character Size Font A : 12 X 24 Font B : 9 X 24 Korean: 24X24 Chinese: 24X24
Character per Line Font A : 42 Font B : 56 Korean: 21 Chinese: 21
Paper type Thermal paper
Paper Spec
Paper Width 80mm
Paper Roll Diameter Max Φ 83.0mm
Paper Supply
Method Easy Paper Loading
MCBF 70,000,000 Lines
Reliability
Auto Cutter 1,800,000 lines
TPH 150 km
Barcodes 1D: EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF, Coda bar, UPC-A, UPC-E <b>2D : PDF417, QR Code</b>
Emulation ESC/POS
Flash Memory 16 Mbit
Driver Windows95/98/Me/2000/NT/XP/2003 server/VISTA, OPOS, JPOS
Sensor Paper Near End Sensor, Paper End Sensor, Cover open sensor
Drawer Port 2 Ports
Interface USB 2.0 on board standard, RS-232C, IEEE1284, Ethernet, Bluetooth
Option
Wall Mount RWM-350
Language Buyer Language Support
Power Supply (Adapter) AC100 ~240V, DC 24V, 2.5A
Dimensions (W*L*H) 145 X 195 X 146 mm
Operating Temp 0 ~ 45°C
Auto Cutter Type Guillotine
