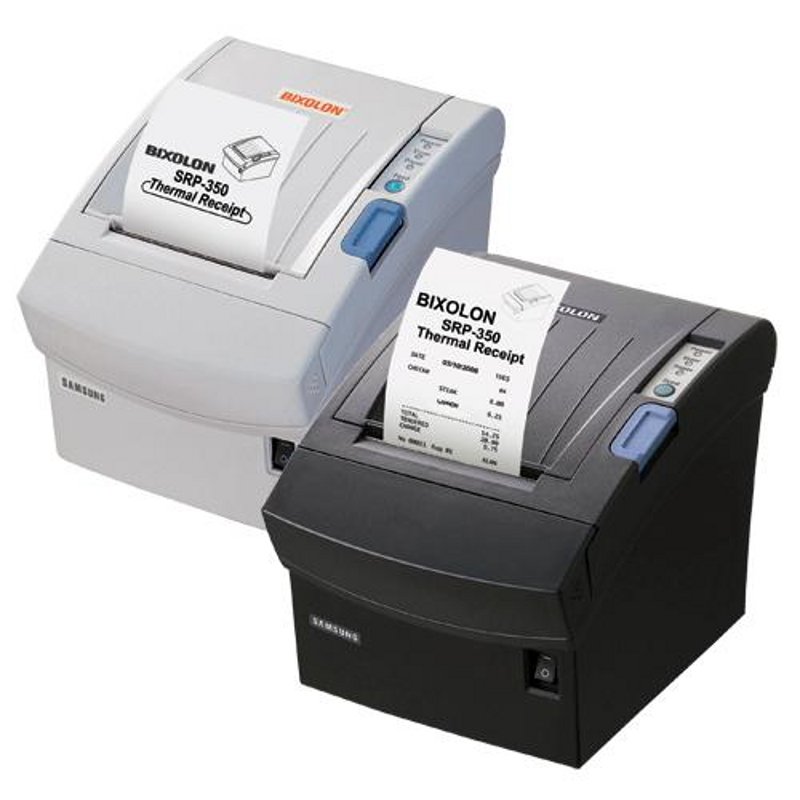

Samsung Bixolon SRP350i / SRP350iG Thermal POS Receipt Printer


[Contact us for a price]
SRP350i / SRP350iG

Description

Discontinued, Replacement:SRP-350 III

The SRP-350 is the most popular direct thermal printer of the BIXOLON Samsung mini printer line-up throughout the world. This printer is fully packed with features and performance that is unmatched in a receipt printer. The SRP-350 is an ideal single station thermal receipt printer for Retail and Hospitality applications and offers the same ultra-reliable quality you have come to expect from BIXOLON.

Main Features :
  • Compact Thermal Receipt Printer
  • 150 mm/Sec High Speed Printing
  • Now standard without interface!
  • Various interface cards available:
  • RS-232C, IEEE Parallel, RS-485, USB or 10/100 Ethernet.
  • ESC/POS compatible
  • Page mode printing
  • Easy to use:
         - Drop in Paper loading
         - Eliminates Paper Jams
  • NV Memory for Bit map Data storage
  • Full or Partial Cut
  • Barcode Printing

Attachments

Samsung Bixolon SRP350-Brochure (srp350.pdf, 842 Kb) [Download]

Specifications



Printing Method

Thermal Line Dot method

Print Speed

Max. 150 mm/sec (47.2 Lines/sec)

Column Capacity

Font A: 42 Columns

Font B: 56 Columns

Character Set

Alpha Numeric Character: 95

Extended Graphics: 128 X 7 (1 Space Page)

International Characters: 32

Character Size

Font A:

1.25 x 3 mm (12 x 24 dots)

Font B:

0.88 x 3 mm (9 X 24 dots)

Emulation

ESC/POS

Bar-code type

UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR,

Code 93

Data Buffer

4 Kb

NV Bitmap Memory

256 Kb

Interface

Serial

RS-232C

RS-485

Unidirectional Parallel

IEEE 1284

USB



Ethernet



Drawer Kick-out

2 drawers through 1 RJ12 Connector

Power

24 DCV +/- 7%, 1.9A,  External power supply

External Dimensions

(WxDxH)

145 x 195 x 146 mm

Reliability

Head

100,000,000 Pulses (100Km)

Mechanism

37,000,000 Lines

Safety Standards

UL, C-UL, FCC Class A, TUV-GS, CE Marking
