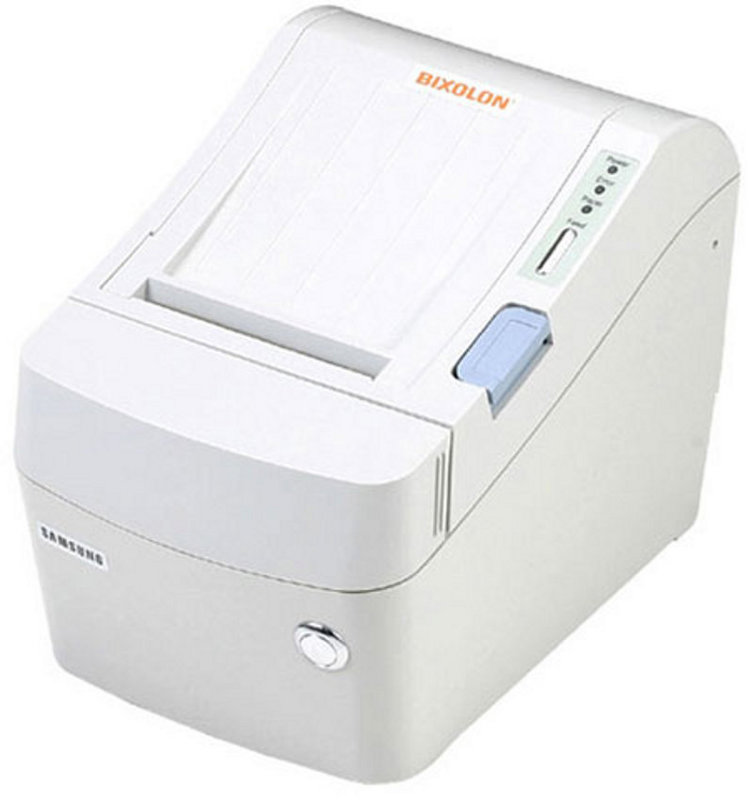

Samsung Bixolon SRP-370P Thermal POS Receipt Printer ** Discontinued **


[Contact us for a price]
SRP370P

Description

 **Discontinued, Replacement: SRP-350 Plus III **

Samsung Mini Printers keep at the forefront of technology and commitment to reliability with new model. Two colour thermal printing capability makes it ideal for corporate branding, highlighting specials, coupons, customer loyalty and restaurant applications. Printing at maximum speed of 200 mm/sec. The logo/firmware download program helps you use logos efficiently and easily.

Features:

    • Compact Thermal Receipt Printer
    • Fast Printing Speed up to 200 mm/sec
    • Two Colour Printing
    • (on special thermal paper)
    • Multiple interface cards available:
    • RS-232C, IEEE Parallel, RS-485, USB, Ethernet & Bluetooth
    • Large NV Bitmap Memory
    • ESC POS Compatible
    • Easy to use:
         - Drop in Paper loading
         - Eliminates Paper Jams
  • Full or Partial Cut
  • available in Dark Grey & White

Attachments

Samsung Bixolon SRP370/372-Brochure (SRP370.pdf, 377 Kb) [Download]

Specifications



Printing Method

Thermal Line Dot method

Print Speed

Max. 200 mm/sec (61.7 Lines/sec)

Resolution

SRP370: 180 dpi (7 dot/mm)

SRP372: 203 dpi (8 dot/mm)

Column Capacity

Font A: 42 Columns

Font B: 56 Columns

Character Set

Alpha Numeric Character: 95

Extended Graphics: 128 X 7 (1 Space Page)

International Characters: 32

Character Size

Font A:

1.25 x 3 mm (12 x 24 dots)

Font B:

0.88 x 3 mm (9 X 24 dots)

Emulation

ESC/POS

Paper Type

Mono & Two Colour Thermal Paper

Paper Width

57.5 ± 0.5 mm, 79.5 ± 0.5 mm, 82.5 ± 0.5mm

Roll Diameter

Max. 105 mm

Bar-code type

UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR,

Code 93

Data Buffer

4Kb

NV Bitmap Memory

256 Kb

Interface

Serial

RS-232C

RS-485

Unidirectional Parallel

IEEE 1284

USB



Ethernet



Drawer Kick-out

2 drawers through 1 RJ12 Connector

Power

24 DCV, 2.3A,  External power supply

External Dimensions

(WxDxH)

146 x 204 x 160 mm

Reliability

Head

150Km

Mechanism

Mono: 70,000,000 Lines

Colour: 35,000,000 Lines

Auto Cutter

1.5 million Cuts

Safety Standards

UL, C-UL, FCC Class A, TUV-GS, CE Marking
