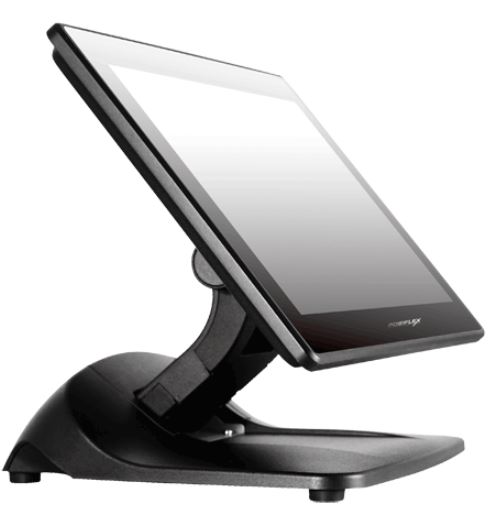

POSIFLEX XT-2614Q 14" ANDROID TOUCH TERMINAL WITH Wifi TOUCH SYSTEM

$1,089.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
XT2614PCAP
+

Description

POSIFLEX XT-2614Q 14" Android Touch Terminal with Wifi

Fanfree 14" LCD touch PCAP terminal with Android 4.2, 1G DDR-3 memory, 2 x COM, 3 x USB, 1 x LAN, MLC NAND flash 8GB, Factory fitted Wifi Antenna and Module

FEATURES :

  • 14" Android Fanless Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 14” LCD 1366 x 768 resolution
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • Push-open cover to protect power switch from accidental shutdown
  • Gen 7 Slim line Base

Specifications :

CPU : Quad Core 1.0GHz

Memory : DDR3 1GB

Storage device(s) : 8GB eMMC + Micro SD

Display : 14" TFT Wide Screen LCD Display

Resolution : 1366 x 768

Tilt Angle : 15° to 90°

Touch Panel : True-flat PCAP Touch with multi-touch support (IP65 on front panel)

I/O Ports : 2 x DB9 RS232, 5V / 12V support on COM 2
3 x Standard USB Ports
1 x 10/100/1000Mb Ethernet Port
1 x 2nd VGA port (SDK will be provided for software integration)

Audio : 2W Speaker

OS Support : Windows XP Pro / POSReady 2009 / Windows 7 32bit / POSReady 7 32bit / Windows Embedded 8.1 Industry 32bit / Linux per request

Environmental Sealing : IP65 to front of the display

Operating Environment : 0 ~ +50 °C, 20 ~ 90% RH with SSD

Storage Environment : -20 ~ +70 °C, 10 ~ 90% RH

Power Supply : 12V DC Power Adapter (60W)
(Optional 80W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)

External Dimensions (WxDxH) : 372mm x 251.8mm x 289.5 mm

Weight : 3.8 Kg



Attachments

Brochure (XT-2614Q.pdf, 409 Kb) [Download]
