Posiflex Fan Free With ATOM 1.6Ghz CPU,1Gb of RAM,32 GB SSD,Red Shinny Bezel and Gen 5 Stand,No OS


[Contact us for a price]
PFKS6815RN-1032S

Description

Discontinued Replacement: XT-3815

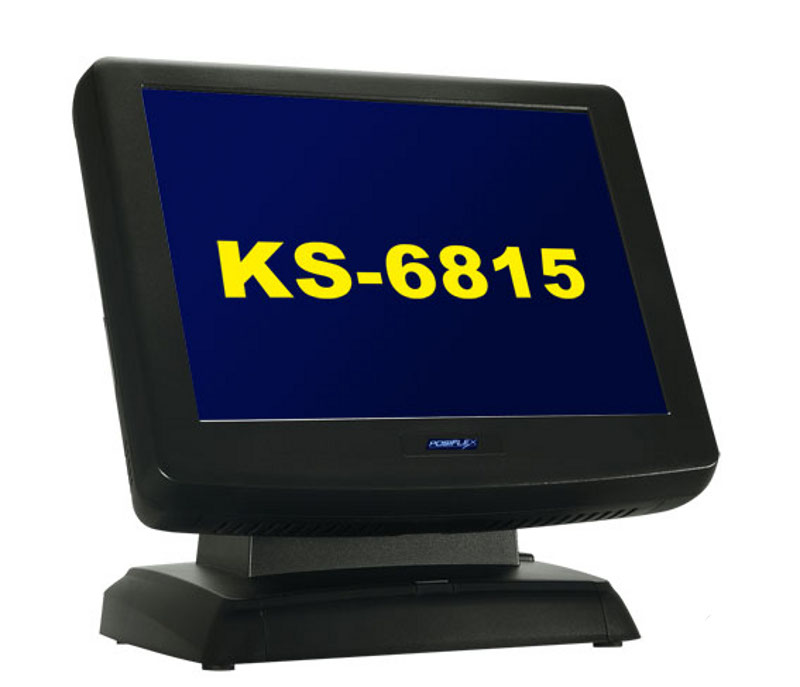

The KS6815 is a Fan Free Touch Screen System which fits perfectly in a wide variety of POS applications. It uses the new low power consumption Intel Atom Processor. It can be fitted with an optional Raid function with 2nd Hard drive. it also supports optional peripherals items such as MSR and CF Memory card reader to meet numerous applications. ks 6815 series suitable for Food & Hospitality and retail segmentation.

Features:

  • PC POS Touch System
  • Fan Free Design
  • Cast Aluminium housing
  • 15" LCD Display with 5-wire Resistive Touch Screen
  • ATOM® 1.6 Ghz CPU
  • 80 Gb Hard Disk
  • 1 Gb RAM expandable to 2Gb
  • Powered Serial ports
  • Optional CF Slot
  • Optional MSR, 2 Line Pole Display or 2nd LCD Display

Attachments

Posifliex PFKS6815 (ks6800.pdf, 215 Kb) [Download]

Specifications



CPU

ATOM® 1.6 Ghz CPU

Memory

1 Gb expandable to 2 Gb

Storage

Standard with 3.5 inch 80 Gb Hard Disk Drive

Also Supports optional SATA1 150MB/s devices

Optional 2nd HDD with RAID Function

LCD

15" Active Matrix LCD Display

Brightness

250 nits

Resolution

1024 x 768

Touch Panel

5-wire Resistive

Connectivity

3 RS-232 Ports (2 x DB9, 1 x RJ45)

1 Parallel Port (Optional Proprietary Cable)

6 USB Ports (4 x on I/O Plate, 2 x on leftside)

VGA Port for 2nd Display

1 Cash Drawer Port (Controls 2 drawers with optional Y-cable)

10/100/1000Mb Ethernet Port

UPS Port

Power on wake up

Through Alarm, LAN or Modem

Sound

2W Speaker in the main unit

Size (W x D x H)

378mm x 304mm x 364mm

Weight

7.7 Kg
