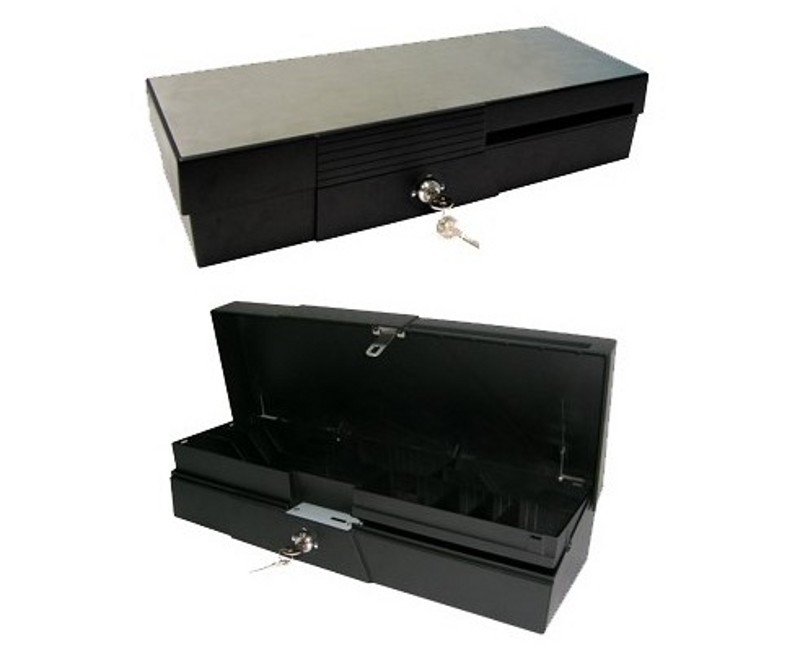

Posiflex CR-2210 Flip-Top Cash Drawer


$190.00
(Inc GST)
PFCR2210B
+

Description

The 2210 series is a flip-top type cash drawer. The CR-2210 series has a Aluminium die-cast base and wear-proof Aluminium die-cast top. This CR-2210 series provides 8 coin and 6 bill compartments. Has RJ12 connector, so cables can be made to length as required.

Main Features :

  • Heavy Duty Cast Aluminium Construction
  • 3 Position Key Lock
  • Space Saving Concept
  • 1 Media Slots
  • 6 Note/8 Coin, C
  • Vertical Note Holders
  • Lockable Lid Included
  • RJ12 Modular solenoid kick out connector or Interface versions available
  • 10~30V Solenoid standard
  • 460mm (W) x 175mm (D) x 102mm (H)

Attachments

PFCR2210B-Brochure (USCR2K2C0.pdf, 172 Kb) [Download]

Specifications



MECHANICAL:

Dimensions:



460 (W) x 195(D) x 101.5 (H) mm



18.2” (W) x 7.7” (D) x 4.0” (H)



Weight: 4.3 Kg



Removable tray with a lock-on cover (option)

ELECTRICAL:



Power Source



Solenoid Drive

(for CR-2210)

Pulse Amplitude

12 to 24 VDC

Pulse Width

100 to 250 msec

Pulse Duty Cycle

10% max

Max. Current Consumption

0.75A @ 12 VDC / 1A @ 24 VDC

AC Adaptor (for CR 2214/2215)



Input Voltage

120 VAC ± 10 % / 240 VAC ± 10 %

@50 -60 Hz

Output Voltage

12 VAC at 1.5 A
