Portable Data Terminals : Falcon DLX3 Series Portable Data Terminal


$2,764.30
(Inc GST)
DLX3-NL-BG00C / DLX3G-NX-BG00C / DLX3G-NL-BG00M / DLX3G-NL-BG00C
+

Description

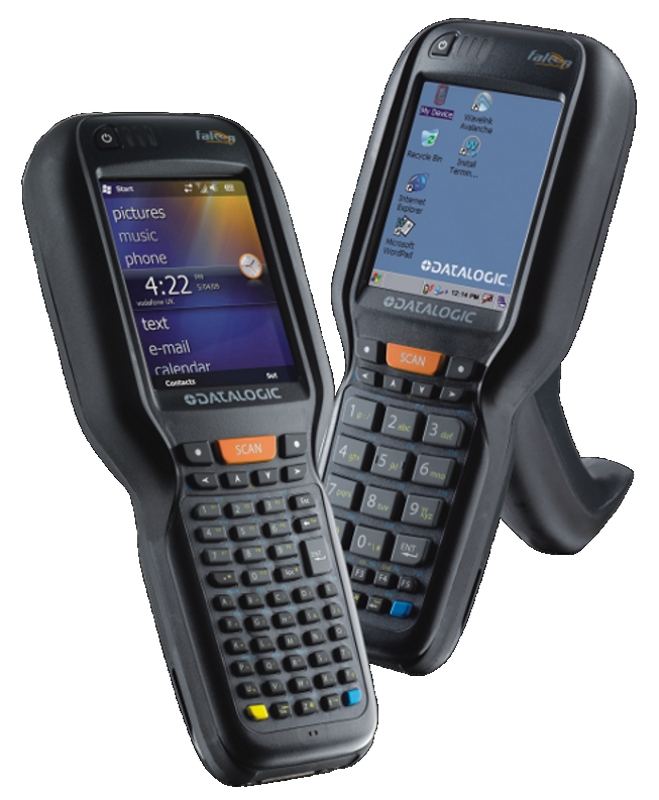

The Falcon™ X3 pocket-sized Windows powered mobile computer is an extremely compact, lightweight, versatile and robust device, combining integrated bar code reading and wireless communication capabilities.

Features:

  • Sharp and Bright 3.5” display  Colour display with touch screen
  • Ergonomic, compact and robust
  • Windows CE 6.0 or Windows Mobile 6.5 Operating System
  • Integrated Laser Scanner or 2D Imager Scanner with Green Spot or Auto Ranging Laser.
  • Ruggedized (IP64 & 1.8m Drop)
  • User Accessible MicroSD memory slot
  • Bluetooth® wireless technology
  • 802.11b/g Wireless LAN.
  • 3 MPixel autofocus camera

Attachments

Falcon™ X3 (falconx3_datasheet.pdf, 340 Kb) [Download]

Specifications



Processor

Parallel  computer architecture Intel X-Scale PXA310 and Cortex-M3 Processors

Development Environment

Datalogic Windows SDK™

JAVA Virtual Machine

Wavelink® Studio™

Wavelink® Terminal Emulator

Datalogic Desktop Utility

Operating Platform

Windows CE 6.0 with Microsoft Wordpad and Internet explorer 6.0 or

Windows Mobile 6.5 with Mobile Tools: Outlook Mobile, Word Mobile, Excel Mobile, Powerpoint Mobile, One note Mobile and Internet Explorer Mobile 6.0

Memory

256MB

Flash Memory

256MB

I/O Slots

1 x Micro SD slot (SDHC Compatible), User-accessible

Scan engine

High Performance Laser scanner with Green Spot

Auto ranging Laser (XLR)

Wide Aspect 2D Imager with Green Spot

Symbologies support

Laser

GS1 Databar, EAN/UPC, Code 39, 2/5 Codes,Plessey, Codabar, Code 128, EAN128, MSI,Code 93, Code 11

Symbologies support

2D Imager

UPC A, UPC E, EAN 8, EAN 13, Interleaved 2 of 5, Code 39, Code 39 Full ASCII, Codabar, Code 128, EAN 128, Code 93, PDF417, DataMatrix, QR, Macro PDF, GS1 Databar, POSTNET, PLANET, Japan Post, Australia Post, KIX Code, Royal Mail RM4SCC

Keyboard

Polycarbonate hard cap keyboards.

29 Numeric Keys or 52 Key Alpha-Numeric Keys

Display

Transflective TFT daylight readable colour display, 240 x 320 pixels, 3.5" diagonal, 64K colours, 200 nit backlight, touch screen

Communications Ports

RS232 via optional Cable

USB OTG with 500mA Power output

Dock Communications: USB OTG & RS232; Ethernet optional

Radio (options)

WLAN

Integrated Wi-Fi IEEE 802.11a/b/g frequency range country dependent, CISCO Compatible

PAN

IEEE 802.15 Bluetooth® Class 2 with EDR

Battery

Lithium ion 3.7V

5000 mAh

Weight

Standard

626g

Pistol Grip

699g
