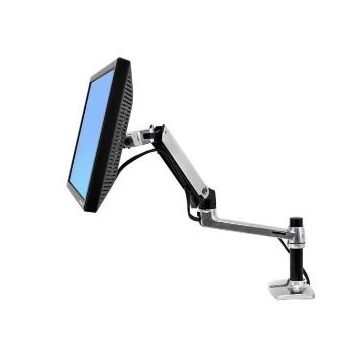

LX Desk Mount LCD Display Arm Polished Aluminium Max size 32in Max weight 11.3kg

$260.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
45-241-026
+

Description

Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion.

Basic
Brand Name: Ergotron
Device Supported: Flat Panel Display
Maximum Load Capacity: 11.30 kg
Maximum Screen Size Supported: 81.3 cm
Product Type: Mounting Arm
VESA Mount Standard: 100 x 100
  75 x 75
General Information
Brand Name: Ergotron
Manufacturer Part Number: 45-241-026
Manufacturer Website Address: http://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx
Manufacturer: Ergotron, Inc
Product Name: LX Desk Mount LCD Monitor Arm
Product Series: LX
Product Type: Mounting Arm
Miscellaneous
Additional Information:
  • Description: LX Desk Mount LCD Monitor Arm (polished aluminum)
  • Includes LX arm, extension, desk clamp and grommet mount bases, 7" pole
  • Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray (50-193-200)
  • Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • Improved LX Arm Features & Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Snap-fit cap secures interface of arm to extension for greater stability
  • New clamp and grommet mount base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks
  • Mounting Options: Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • Weight Capacity: 5 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
  • Tilt Range: 70° backward, 5° forward
  • Product Weight: 7.8 lbs (3.6 kg)
  • Shipping Dimensions: 17.75" x 10.5" x 6.75" (45 x 27 x 17 cm)
  • Shipping Weight: 9.75 lbs (4.4 kg)
  • Warranty: Ten (10) years
Certifications & Standards:

VESA:

  • FDMI MIS-D
  • 100 mm x 100 mm
  • 75 mm x 75 mm
Compatibility:

Upto 24" LCD

Package Contents:
  • 45-241-026 LX Desk Mount LCD Arm
  • Mounting Hardware
  • Extension
  • Desk Clamp
  • Grommet Mount Bases
Physical Characteristics
Material: Aluminium
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
  75 x 75
Weight (Approximate): 3.54 kg
Product Information
Device Supported: Flat Panel Display
Features: 360° Rotation
  Pan
  Tilt
Maximum Load Capacity: 11.30 kg
Maximum Screen Size Supported: 81.3 cm
Number of Displays Supported: 1
Warranty
Limited Warranty: 5 Year

Attachments

Brochure (5_1048876_Brochure.pdf, 1,355 Kb) [Download]
