Description

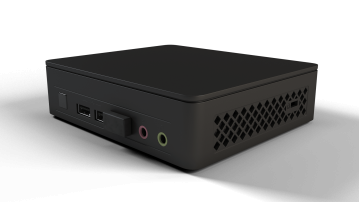

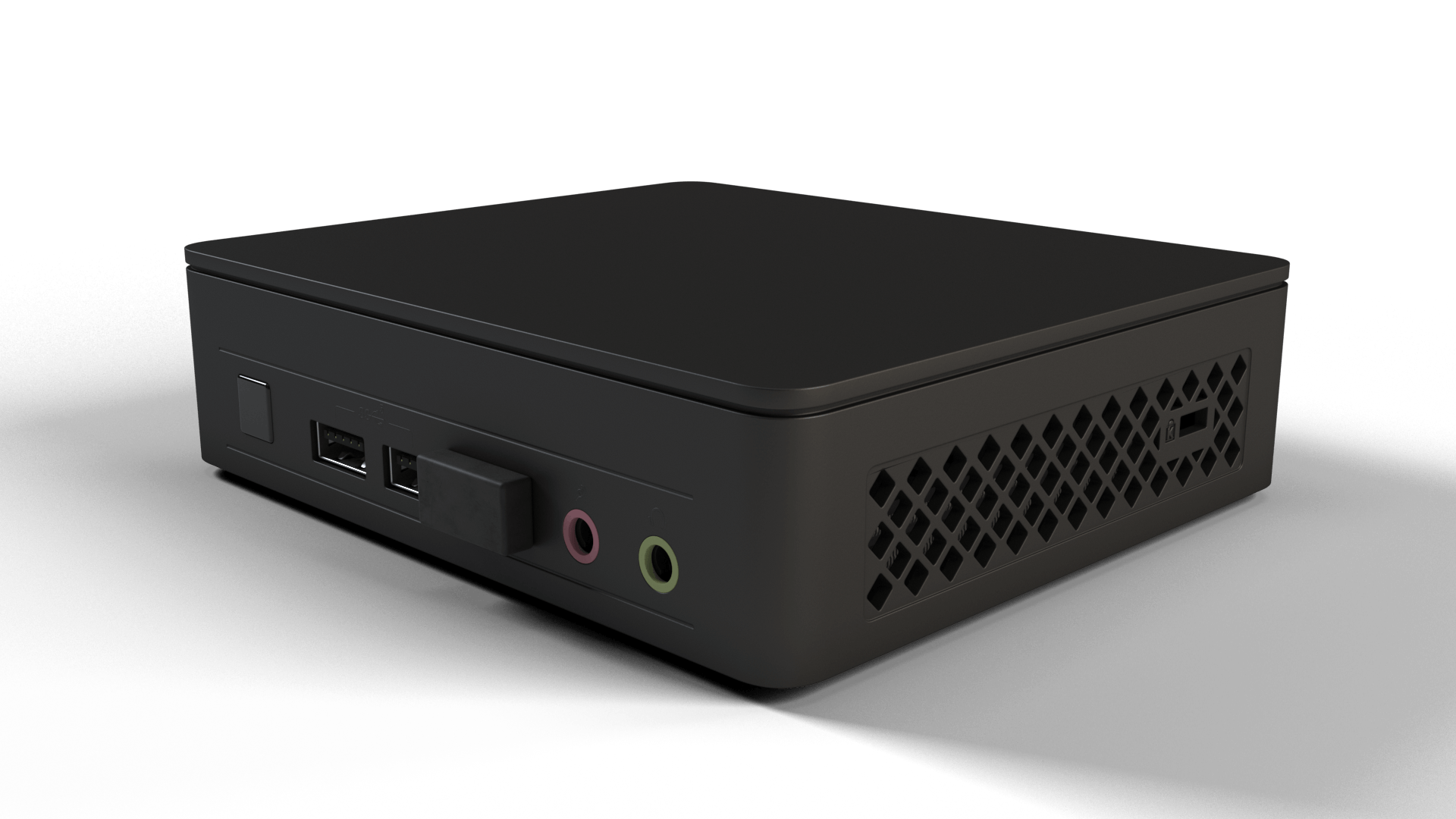

The name says it all. Intel® NUC 11 Essential Mini PCs, Kits, and Boards are the essential, everyday solution for kiosks, collaboration and streaming, and digital signage. Powered by Intel® Pentium® Silver or Celeron® processors, these powerful, cost-efficient systems deliver Intel reliability and quality.
For fast performance, systems come with up to quad-core Intel Pentium Silver processors, up to 32GB dual-channel memory, and optional 64GB storage. Quality and flexibility are built in, with a simplified overall design, numerous built-in mounting options, both HDMI and DP++ video ports, six USB ports, and more.
Specifications :
|
Essentials |
N/A |
|
Product Collection |
Intel® NUC Mini PC with Intel® Celeron® Processors |
|
Code Name |
Products formerly Atlas Canyon |
|
Marketing Status |
Launched |
|
Launch Date |
Q1'22 |
|
Pre-Installed Operating System |
Windows 11* |
|
Supported Operating Systems |
Windows 11* | Windows 10* | Linux* |
|
Board Number |
NUC11ATBC2 |
|
Socket |
Soldered-down BGA |
|
Internal Drive Form Factor |
M.2 SSD |
|
# of Internal Drives Supported |
1 |
|
Embedded Storage |
64 GB |
|
TDP |
10 W |
|
DC Input Voltage Supported |
19VDC |
|
Recommended Customer Price |
$195.00 - $217.80 |
|
Processor Included |
Intel® Celeron® Processor N4505 (4M Cache | up to 2.90 GHz) |
|
Total Cores |
2 |
|
Total Threads |
2 |
|
Processor Base Frequency |
2.00 GHz |
|
Lithography |
10 nm |
|
Warranty Period |
3 yrs |
|
Supplemental Information |
N/A |
|
Embedded Options Available |
No |
|
Description |
Other features: 4GB DDR4 SO-DIMM; 64GB eMMC on-board; Windows® 11 Home in S Mode pre-installed. |
|
Memory & Storage |
N/A |
|
Included Storage |
64GB eMMC |
|
Included Memory |
1x 4GB DDR4 RAM |
|
Max Memory Size (dependent on memory type) |
32 GB |
|
Memory Types |
DDR4-2933 1.2V SO-DIMM |
|
Max # of Memory Channels |
2 |
|
Max # of DIMMs |
2 |
|
ECC Memory Supported |
No |
|
Processor Graphics |
N/A |
|
Integrated Graphics |
Yes |
|
Graphics Output |
DP++/HDMI |
|
# of Displays Supported |
2 |
|
Expansion Options |
N/A |
|
PCI Express Revision |
Gen 3 |
|
M 2 Card Slot (wireless) |
N/A |
|
M 2 Card Slot (storage) |
N/A |
|
# of USB Ports |
6 |
|
USB Configuration |
2x front USB 3.2 Gen 1 and 2x rear USB 3.2 Gen 2; 2x USB 2.0 |
|
USB Revision |
3.2 Gen 2 / 3.2 Gen 1 / 2.0 |
|
Audio (back channel + front channel) |
1x 3.5mm stereo out jack | 1x 3.5mm microphone jack |
|
Integrated LAN |
10/100/1000 |
|
Integrated Wireless |
Intel® Wireless-AC 9462 + Bluetooth 5.0 |
|
Integrated Bluetooth |
Yes |
|
Chassis Dimensions |
135x115x36mm |
|
Intel® HD Audio Technology |
Yes |
|
Intel® Platform Trust Technology (Intel® PTT) |
Yes |
|
Intel® AES New Instructions |
Yes |
