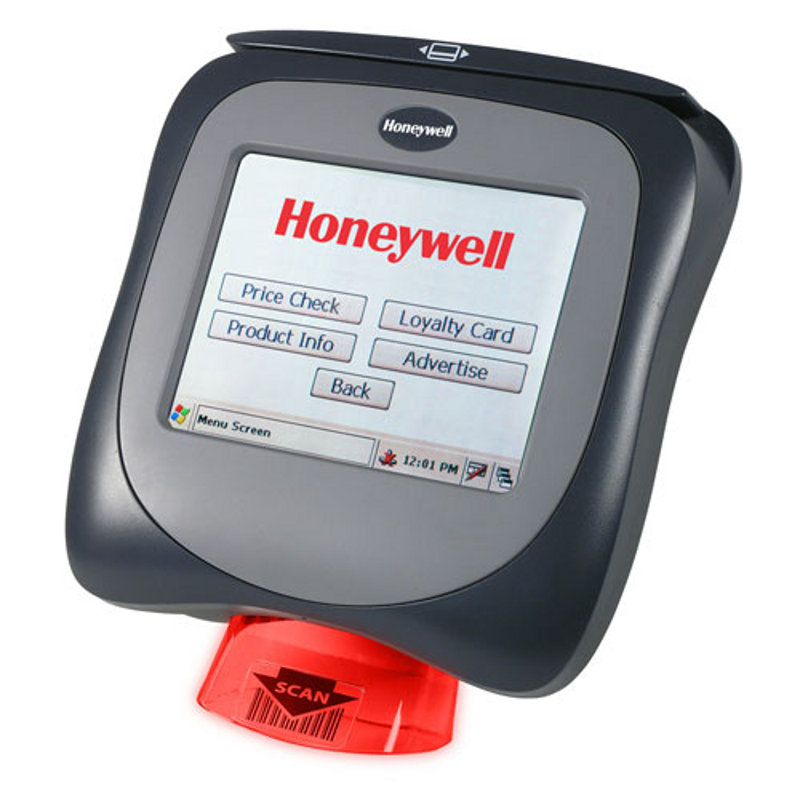

Honeywell IK8570 Price Checker & Interactive Kiosk Barcode Scanner


[Contact us for a price]
IK8570

Description

*Discontinued*

The Image Kiosk 8570 are designed to give customers instant self-access to information they need. Offering a range of functionality including price checking, item information look-up, and loyalty program administration, Image Kiosks give you the ability to assist and communicate with your customers effectively and efficiently – all without requiring them to seek out an employee.

Main Features :
  • Small footprint, taking up minimum floor space
  • Customer-Safe Scanning Technology
  • High Performance Intel® XScale® processor
  • Fast and intuitive bar code reading of all linear and 2D bar codes
  • Finger-touch navigation
  • Integrated Magnetic Stripe Reader (IK8570 only)
  • Powerful integrated software tools for simplified configuration and application development

Attachments

Honeywell IK8570-Brochure (ik8560_8570.pdf, 217 Kb) [Download]

Specifications

Processor

Intel® XScale® PXA255 200 Mhz

Operating Platform

Microsoft Windows CE 5.0

Memory

IK8570 Models 64Mb FlashROM x 64Mb SDRAM onboard memory

Third Party Software

MSM, ITScriptNet®, Connect

Imager

5100 Standard Range with LED aimer

Depth of Field

5.3 to 33.5 cm for 30 mil UPC

MSR

Track 1, 2 & 3 (IK8570 only)

LCD Size

5.7" 1/4 VGA

LCD Resolution

320 x 240 dot, 16 bit colour

Touch

Resistive, transparent, pressure-sensitive touch screen

Touch Pad Resolution

903 x 1238 ppi

Interfaces

RS-232 (4800 to 115.2 Kbps)

PC USB (AC power adapter required)

USB Hub Host (5V DC power pass-through support for USB 1.1 for up to 10 devices

Ethernet 10/100 (IK8560EE & IK8570CE)

WLAN 802.11b (IK8560CE & IK8570CE)

Dimensions

W x D x H

221 x 185 x 81 mm

Weight

0.9 Kg

Operating Temperature

0ºC to +40ºC

Humidity

0 to 95% non-condensing
