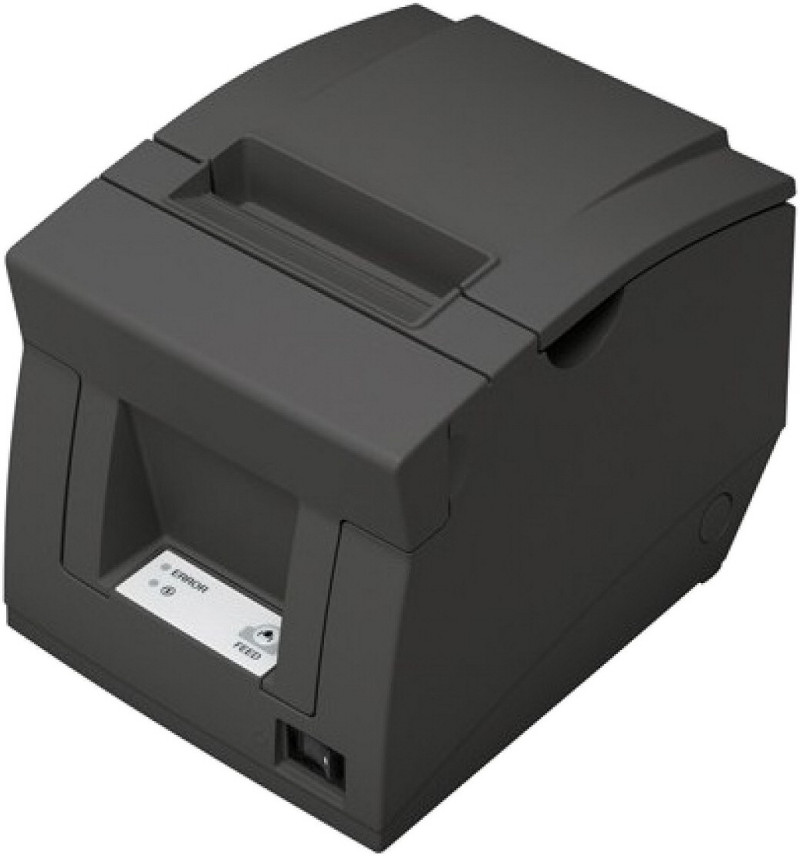

Epson TM-T81 Thermal Receipt Printer


[Contact us for a price]
TM-T81-306 / TM-T81-302/ TM-T81-308/ TM-T81-304

Description

** DISCONTINUED - SWITCH TO Epson TM-T82 II **

 TM-T81 inherits tradition of high reliability, usability, and functionality of the industry leading POS printer TM-T88 series.

High Reliability
TM-T81's auto cutter is processed by the Solid-Chromium plating treatment, and the paper end sensor has a paper dust proof structure. TM-T81's unbreakable metal hinge cover ensures your safety operation in a hard usage environment.
Flexible Connectivity
TM-T81 provides a choice from the serial interface, USB 2.0 interface, Bi-directional parallel interface, and Ethernet interface for connections to various hardware; regardless if it is new or old.
Easy-to-use
Like other TM printers, TM-T81's roll paper replacement is very easy, but its structure ensures protection from penetration of foreign material such as a clip and water drops.
High Functionality
TM-T81's Windows driver (Advanced Printer Driver) is designed for high performance as TM-T88 series. TM-T81bundles Status API to acquire the printer status and Dev mode API for parameter control, so it can be used for advanced applications required to monitor printers such as the use in Kiosk or as a kitchen printer.

Features:
  • Features Epson reliability and functionality
  • Flexible connectivity
  • Fast and high quality printing
  • Easy to use features include drop-in paper loading and integrated autocutter
  • 36 months warranty

Attachments

EPSON TM-T81-Brochure (tm-t81.pdf, 241 Kb) [Download]

Specifications



PRODUCT CODE (INTERFACE)

C31C598202 – TM-T81-202 (Serial)



C31C598204 – TM-T81-204 (Parallel)



C31C598206 – TM-T81-206 (USB)



C31C598208 – TM-T81-208 (Ethernet)

PRINTER TYPE

RINTING METHOD

DOT DENSITY

PRINT DIRECTION

PAPER WIDTH

PRINTING WIDTH



Thermal Line Printing

203 dpi x 203 dpi [dpi: dots per inch (25.4 mm)]

Unidirectional with friction deed

80 mm (3.15”)

72 mm (2.83”), 576 dot positions

PRINT FONTS



CHARACTERS PER LINE (DEFAULT)

48/64

CHARACTER SPACING (DEFAULT)

0.25 mm (0.01”) [2 dots] [Note: programmable by control demand]

LINE SPACING

3.75 mm (0.15”) [Note: programmable by control demand]

CHARACTER SET

95 Alphanumerical, 1 x International, 128 x 1 Extended Graphic

South Asia models carry Thai (128 x 3) &

Vietnamese (128 x 2) characters

CHARACTER STRUCTURE

12 x 24 / 9 x 17 / 9 x 24 (including 2-dot spacing horizontally)

PRINTER SPEED



NORMAL

150 mm/s (5.91”/s)

Approx 40.0 Ips [3.75 mm (0.15”) feed]

PAGE MODE PRINTING

150 mm/s (5.91”/s)

BIT-IMAGE PRINTING

150 mm/s (5.91”/s)

RASTER BIT-IMAGE PRINTING

150 mm/s (5.91”/s)

LADDER BAR CODE, 2 DIMENSIONAL PRINTING

99 mm/s (3.90”/s)

PAPER FEED SPEED

Approx 150 mm/s (5.91”/s) [Continuous paper feeding]

PAPER



ROLL PAPER

Width: 79.5 ± 0.5 mm (3.13” ± 0.02”) Diameter: 83 mm (3.27”) maximum

THICKNESS

0.06 to 0.07 mm (0.002” to 0.003”)

RELIABILITY



MTBF (MEAN TIME BEFORE FAILURE)

360,000 hours

MCBF (MEAN CYCLE BEFORE FAILURE)

52 million lines Auto cutter 1.5 million cuts

DIMENSIONS

144 (W) x 189 (D) x 145 (H) mm 5.67” (W) x 7.44” (D) x 5.71” (H)

WEIGHT

Approx. 1.7 kg

AUTOCUTTER

Built-in

ROLL PAPER DEVICE

Built-in

POWER

24VDC ± 7%

POWER CONSUMPTION

Approx. 1.4 A (Mean)

POWER SUPPLY

PS-180 (included)

PRINTER DRIVER

Windows® Printer Driver (APD)
