Datalogic DLQS2500

DataLogic QS-2500 QuickScan Linear Imager Handheld Barcode Scanner


[Contact us for a price]
DLQS2500-K

Description

 The QuickScan QS2500 is Datalogic’s general purpose low cost handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price.
Main Features:
  • Handheld Linear Imager Scanner
  • Aggressive reading and extended depth-of-field
  • Reliable and durable, No moving parts
  • 10 drops from 1.5m to concrete
  • Developed with operator comfort in mind
  • Lightweight, ergonomic design
  • RSS Decoding & PDF417 reading

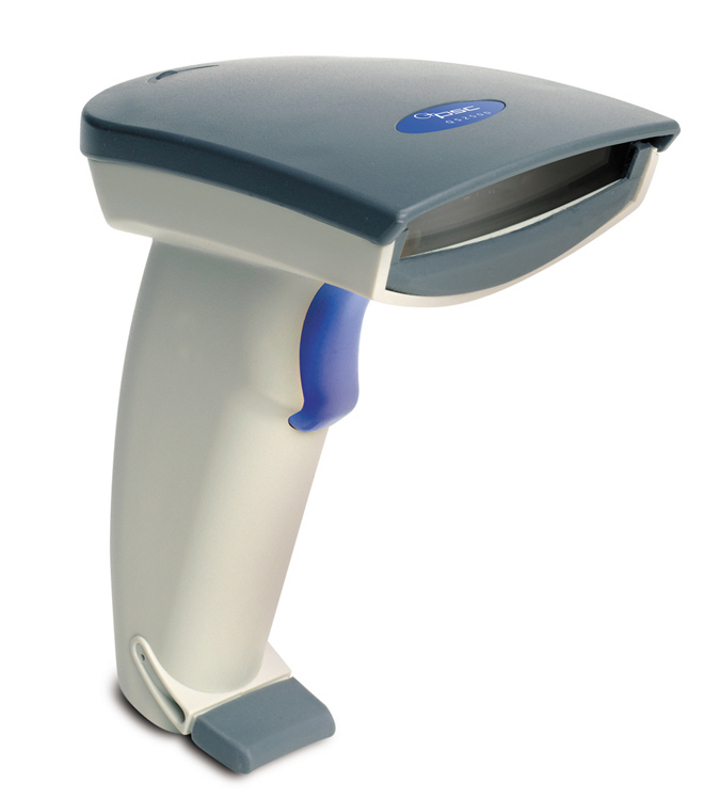

  • Available in Light grey (see picture) and Black

Attachments

Datalogic DLQS2500-Brochure (qs2500.pdf, 143 Kb) [Download]

Specifications

Depth of field

5 mil

2.5 - 11.4cm

10 mil

1.3 - 21.6 cm

13 mil (100% UPC)

1.3 - 28.0 cm

20 mil

2.5 - 40.6 cm

Lightsource

660nm Visible Red Diode

Scan rate

200 Scan/sec

Resolution

0.13mm/5 mils

Print Contrast

25% or higher

Scan Width

10.2 cm at 12.7 cm from label

Pitch Angle

+/- 60º

Skew Angle

+/- 75º

Scan Angle

+/- 46º

Interface

PS2 Keyboard wedge, Wand emulation, Standard RS-232, USB, IBM 46xx and IBM USB

Symbologies supported

UPC-A/E, EAN8/13, JAN8/13, Code128, Codabar, Pharmacode39, Code93, Interleaved 2 of 5, Code39, Standard 2 of 5, IATA, MSI, Plessey, RSS 14, RSS Expanded, RSS-14 Stacked, RSS Limited, Matrix 2 of 4, PDF417 with audio assist.

Dimensions (H x W x L)

185 x 74 x 114 mm
