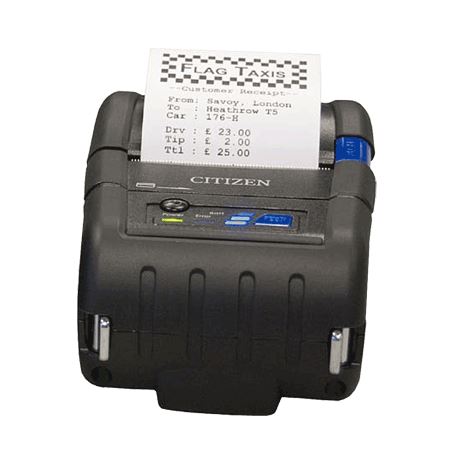

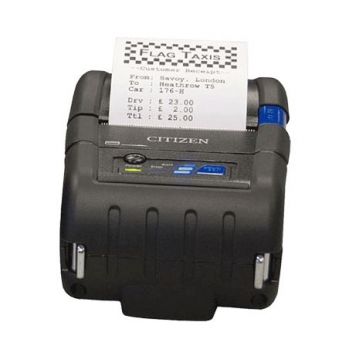

CITIZEN CMP-20 Portable Wifi 57mm Mobile Printer

$776.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
CMP20WF
+

Description

CITIZEN CMP-20 Portable Wifi 57mm Mobile Printer

CITIZEN CMP-20 Portable Wifi Printer, 2"/57mm Paper, speed up to 80mm/sec

Features :

  • 2 inch Portable Thermal Printer
  • Paper Drop in Style
  • USB & RS232 interface standard
  • Factory option of Bluetooth® and Wireless LAN interfaces.
  • BT Compatible with iPhone 3GS, 4, 4S, 5, 5S, 5C, iPad (3rd - 4th Gen), iPad 2, iPod, iPod mini, iPod touch (3rd to 5th Gen)
  • Li-ion rechargeable Battery
  • Battery monitoring
  • Belt Clip
  • Internal Charging Circuit
  • Belt Clip & Strap holder
  • Firmware & Font Data loaded through interface
  • Auto power off function
  • Factory option: 3 track Magnetic stripe car reader

Specifications :

Printing Method : Line Thermal Dot Printing

Printing Width : 48 mm Paper

Dot Pitch : 203 dpi

Printing Speed (Max.) : Max. 80mm/sec

Number of Columns : Font A - 32 columns
Font B - 42 columns

Character Size : Font A: 12 x 24 Dots
Font B: 9 x 17 Dots

Character Table/Code Pages : Alphanumeric characters, extension character, 18 codepages, 14 international characters

Bar-code Type : UPC/A, JAN (EAN) 13 & 8, ITF, CODE 39, CODABAR, CODE 93, CODE 128, PDF417 (2D)

Line Spacing : 4.23mm changable using commands

Paper feed method : Friction

Paper Type : Thermal Paper Roll

Paper Width : 58 mm Paper

Paper Roll Diameter : Max Ø 48 mm

Paper Thickness : 65um

Paper Supply Method : Easy Paper Loading, Drop in and Print

Auto Cutter : N/A

Indicators/Controls : Power and Battery Charge & Error Indicator
Paper Feed & Power Button

Emulation : ESC/POS

Memory : 256KB - capable of storing user defined characters and logos

Sensors : Paper End Sensor, cover open sensor

Interfaces : Standard: Serial (RS 232C) & USB
Optional (Model dependant):
Bluetooth class 2
WLAN 802.11 b/g

Driver available : Windows 2000/XP/Vista, Windows Mobile, CUPS, Windows SDK, Windows SDK CE5/CE6,Androide SDK, iOS SDK

Software Utilities : iOS SDK, Android SDk

Battery : Rechargeable 7.4V Li-ion 1800mAh
On Full Charge: Continuous printing for up to 90 minutes, 24 Hours on Standby
Charger Specifications: Input 100-240V AC, 50-60Hz, Output 8.4VDC 1200mA

MSR : Factory Option
2 Track MSR
IC Card Reader

External Dimensions (WxDxH) : 96 x 136 x 58 mm

Weight : 442 g

Operating Environment : 5 to 40 °C
95% RH None condensing

Storage Environment : -10 to 50°C
95% RH None condensing

Environmental Sealing : IP42

Mechanical Shock : multiple drops of 1.2m (6 faces)

Reliability : Printhead 50 kmEMC/Safety StandardsUL, C-UL, FCC Class A, TUV-GS, CE, CCC



Attachments

Brochure (CITIZEN.pdf, 164 Kb) [Download]
