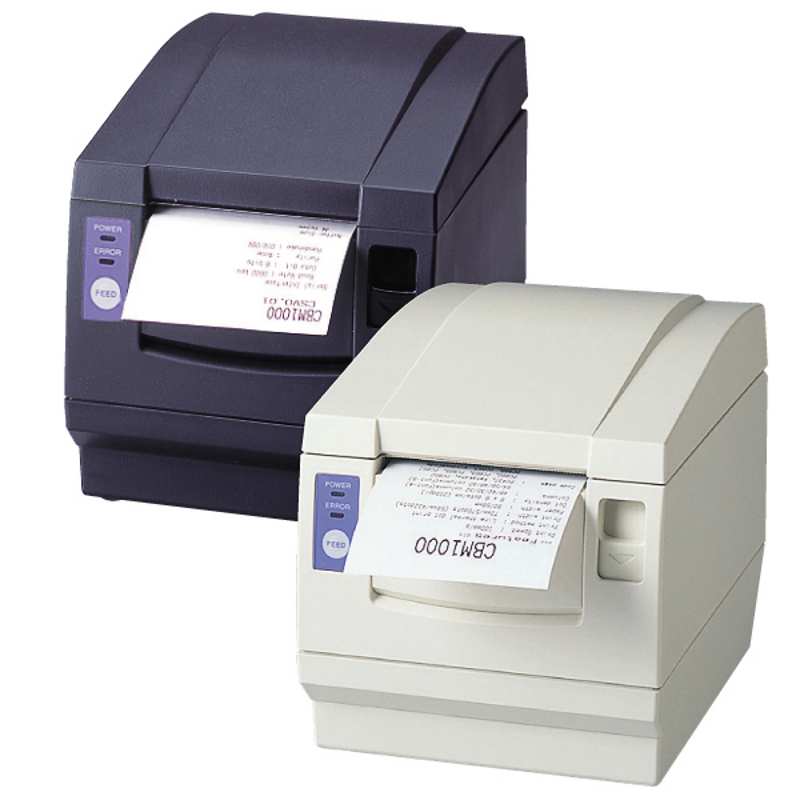

Citizen CBM1000 Thermal Pos Label Printer With USB Interface, Black

[Contact us for a price]
CBM1000UBL

Description

The Citizen CBM-1000ii Thermal docket printer fits perfectly in a wide variety of POS applications. It is widely accepted by government agencies, schools, general retail and hospitality. Combines high-speed, two-colour printing with a compact footprint and spill proof lid.
Main Features:
  • High Speed (150mm/sec) Direct Thermal Printing
  • Drop in Paper loading
  • Two Colour Printing (with Special Paper)
  • Barcode Printing
  • Compatibility (ESC/POS)
  • Can be made compatible with iDP354x & CBM7xx Series Printers
  • NV Memory for Bit map Data Storage
  • Page mode printing
  • Designed for better dissipation of fluid spills.
  • User-changeable interface
  • Flexible paper widths. (80mm & 58mm)
  • Internal Power Supply
  • Capable of reducing height by removing power supply section.
  • Available in Black and Ivory

Attachments

CBM-1000-Brochure (cbm1000ii_brochure.pdf, 71 Kb) [Download]

Specifications

Printing Method

Line Thermal Dot Printing

Printing Width

80mm Paper: 72mm/576 Dots

58mm Paper: 54mm/432 Dots

Dot Pitch

8 x 8 dots/mm (203 dpi)

Printing Speed (Max.)

approx. 150 mm/Sec (35.4 Lines/sec)

Number of Columns

80 mm Paper: Font A - 44/42 Columns, Font B - 64/56 Columns

58 mm Paper: Font A - 36/30 Columns, Font B - 48/40 Columns

Character Size

Font A: 1.25 x 3.00mm (12 x 24 dots)

Font B: 0.88 x 3.00mm (9 x 24 dots)

Character Table

Alphanumeric Character (Font A & B)

Code Page 437, 850, 860, 863, 865, 852, 866, 857, Katakana & Windows Code

Bar-code Type

UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, Codabar, Code 93

Line Spacing

4.23mm (1/6 inch, can be set by a command

Paper feed method

Friction

Line Feed Speed

40 Lines/Sec

Paper Type

Thermal Paper Roll

Paper Width

80 ± 0.5mm or 58 ± 0.5mm

Paper Roll Diameter

Max Ø 83.0mm

Paper Supply Method

Easy Paper Loading, Drop in and Print

Emulation

ESC/POS

Print Buffer

4K bytes

NV Memory

256 Kbytes

Sensors

Paper Near End Sensor, Paper End Sensor , Rear Cover Open Sensor

Drawer Ports

2 ports

Standard Interfaces Available

Parallel

IEEE1284 and Centronics Compliant

Serial

RS232C

USB



Ethernet

10/100 with many security protocols

Driver available

Windows 2000/NT/XP/2003 server, OPOS

Software Utilities

Firmware/NV Image download

Weight

2.0 Kg

External Dimensions

(W x D x H)

145 x 190 x 157 mm Standard model with internal power adapter

145 x 190 x 114 mm External Power Adapter

Reliability

Head

100,000,000 pulses or 100 Km

Auto Cutter

500,000 cuts

EMC/Safety Standards

UL, C-UL, FCC Class A, TUV-GS, CE

Power Supply (Adapter)

Input: AC100 ~230V± 10%(include)

Output: DC 24V,1.9A
