Save 10%

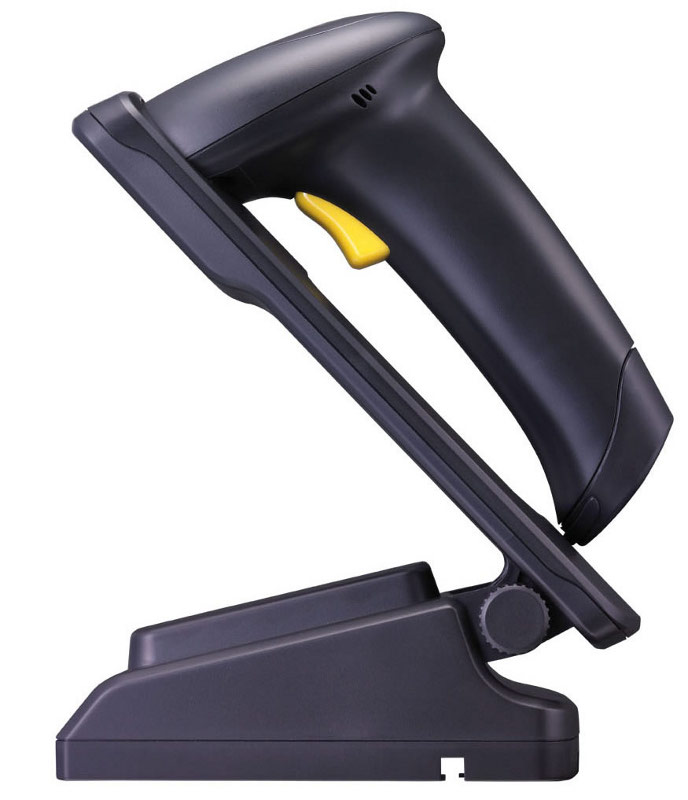

CipherLab 1500 RS232 Black Distance CCD Barcode Scanner

List price: $199.00
$179.00
(Inc GST) You save: $20.00 (10%)
CL1500RS232B
+

Models

+
$199.00 $179.00 (Inc GST)
+
$195.00 $129.00 (Inc GST)

Description

CipherLab 1500 Distance CCD Scanner with Stand and Serial Interface.
The 1500 offers accuracy and efficiency with the reliability of no moving parts for low cost of ownership. Delivering a snappy 200 ecodes/second, the 1500's 2500-pixel optical scanner reads multiple symbologies in a single tool and provides auto-sense scanning. A large LED and adjustable tone signal instant scan recognition to speed workflow.
Main Features :
  • Snappy 200 decodes/second for fast workflow
  • D.O.F. 0.5 cm to 35 cm
  • resolution 3 mil
  • minimum 30% PCS
  • Innovative three-way auto-sense
  • desktop or wall mount stand
  • Built of thermoplastic polyurethane (TPU)
  • withstands multiple 1.5 meter drops onto concrete
  • rated IP30 No moving parts for reliable service and low cost of ownership
  • Supports multiple languages and symbologies for worldwide applications
  • includes free ScanMaster software

Attachments

cipherlab:1500 series-Brochure (CPL_1500_Brochure_EN_All.pdf, 869 Kb) [Download]

Specifications

Module

Bluetooth Class 2 (2.4 GHz) Version 2.0

Coverage

90 m1 / 295 ft. line of sight

Standard profile

SPP, HID

Optical sensor

2500 pixels

Light source

Red LED 625 nm (1560: Red LED 618-626 nm)

Resolution

3 mil

Depth of field 13 mil barcode

0.5 to 35 cm / 0.2 to 13.8 in. (1500WA: long barcode 8.2 cm, 8 mil- 7.5 to 14.5cm / 3 to 5.7 in.)

Scanning angle

Pitch ± 70° Skew ± 70°

PCS

Minimum 30%

Scan rate

200 scans, decodes / second (1500WA: 100 scans / second)

Hands-free scanning

Auto-sense and continuous modes

Programmable features

Data editing, interface selection, symbology configuration

Weight without cable / with battery

145 g / 5.1 oz. (1560: 173 g / 6.1 oz.)

Color

Black

Memory for Bluetooth scanner reserver buffer / batch mode

4 K / 512 K

Voltage

+5 V ±10% / 3.7 V 800 mAh Li-ion battery

Power consumption3

Standby / Operating

50 mA / 265 mA

(1560: 45 mA / 270 mA)

Factory Warranty

5 years
