Description

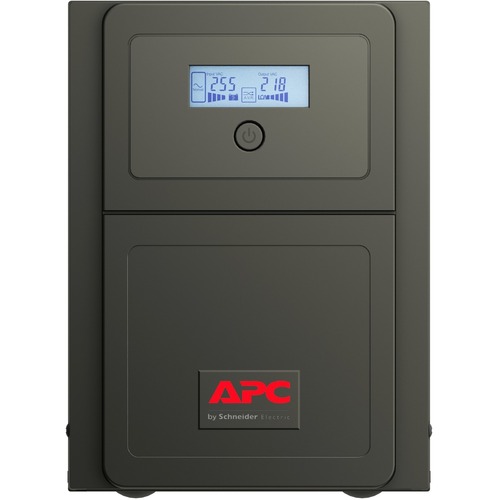

APC by Schneider Electric Easy UPS Line-interactive UPS - 1.50 kVA/1.05 kW - Tower - AVR - 4 Hour Recharge - 3.30 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Serial Port
UPS with the best value for money with backup battery & surge protection for electronics and computers
For our home and small office customers, Schneider Electric's APC offers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions and at the same time guarantee the quality of millions of professionals around the world.
Features
Works adequately in situations where the supply is prone to sags and surges
Up to 3.30 minute runtime on full load to preserve critical data from power shortage interruptions
Specifications :
Controls/Indicators
|
Status Indicators |
LCD Graphics Display:
LED Indicators:
|
Interfaces/Ports
|
Serial Port |
Yes |
|
USB (HID Compliant) Port |
Yes |
Management
|
Alarm |
On Battery |
|
Overload |
|
|
Low Battery |
Environmental Conditions
|
Maximum Operating Temperature |
40°C |
|
Maximum Operating Elevation |
3 km |
|
Maximum Storage Elevation |
3 km |
|
Sound Emission (A-Weighted) |
45 dB(A) |
Physical Characteristics
|
Weight (Approximate) |
17.80 kg |
|
Form Factor |
Tower |
|
Height |
220 mm |
|
Width |
160 mm |
|
Depth |
410 mm |
Technical Information
|
Application/Usage |
Office |
|
SOHO Office |
|
|
Electronic |
|
|
Computer |
|
|
Overload Protection |
Yes |
|
Plug/Connector Type |
IEC 60320 C14 |
|
Receptacle Type |
IEC 60320 C13 |
|
AVR |
Yes |
|
Transfer Time |
2 ms |
|
Receptacle Detail |
6 x IEC 60320 C13 |
Power Description
|
Input Voltage |
230 V AC |
|
Output Voltage |
230 V AC |
|
Waveform Type |
Sine Wave |
|
Input Voltage Range |
160 V AC - 295 V AC |
|
Output Frequency |
60 Hz |
|
Input Frequency |
65 Hz |
Battery Information
|
Battery Chemistry |
Lead Acid |
|
Battery Capacity |
10000 mAh |
|
Number of Batteries |
2 |
|
Backup/Run Time (Half Load) |
11.80 Minute |
|
Backup/Run Time (Full Load) |
3.30 Minute |
|
Battery Characteristics |
Maintenance-free, Sealed, Leak-proof |
|
Typical Battery Recharge Time |
4 Hour |
General Information
|
Product Type |
Line-interactive UPS |
|
Manufacturer Part Number |
SMV1500CAI |
|
Manufacturer Website Address |
|
|
Manufacturer |
Schneider Electric SA |
|
Product Name |
Easy UPS 1.5kVA Tower UPS |
|
Product Line |
Easy UPS |
|
Brand Name |
APC by Schneider Electric |
